Omega 6
The Omega family tent range is an affordable combination of comfort, space, stability and ease of construction
Main advantages
Used materials
The fiberglass rods are made with a new technology that achieves lower segment weight with increased resistance to breakage.
Lightweight and solid polyester flysheet fabric has high resistance to UV, does not age and retains its properties during prolonged exposure to sunlight and heat
PU coating
It is a thin waterproof polyurethane layer applied several times on the inside of the tropic.Depending on the number of layers of coating, the tropic is resistant to water pressure up to 4000mm (Extreme and Hiking series), 3000mm (Trekking and Family series) and 2500mm (Outdoor series). The coating retains its elasticity even at very low temperatures well below freezing.
Detailed Description
Omega 6

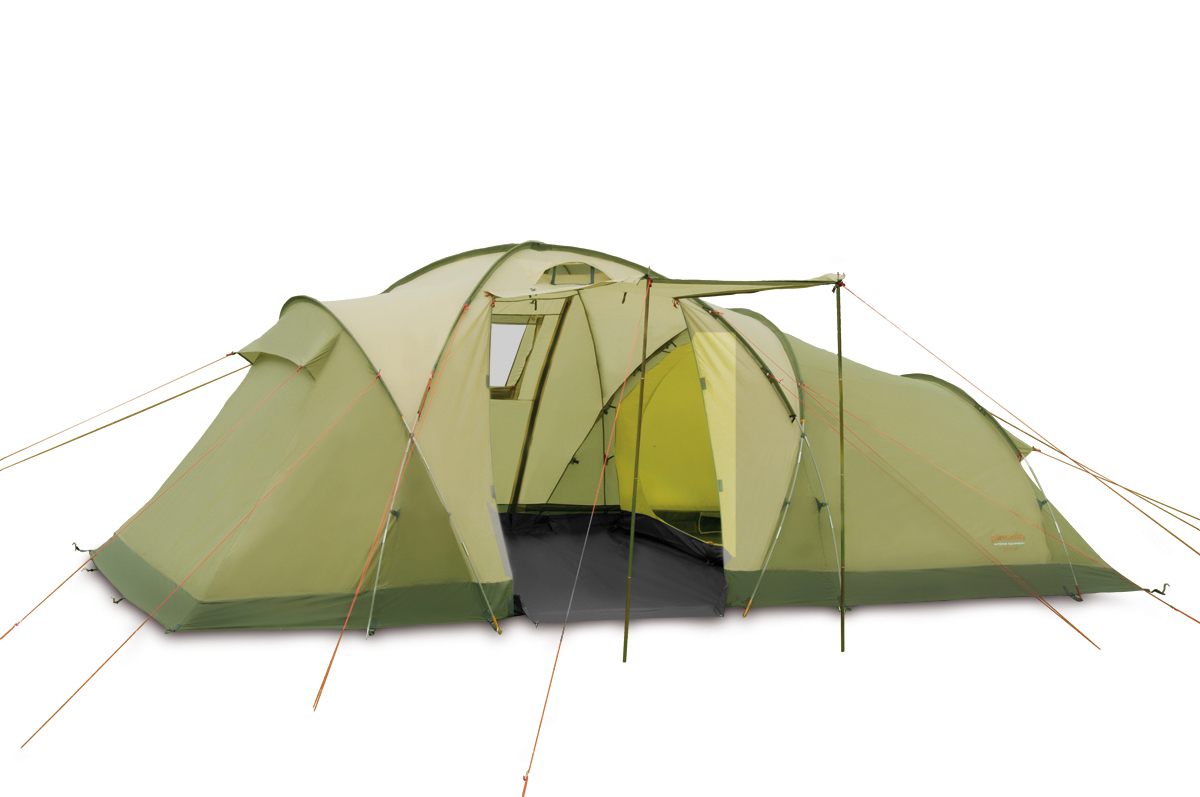

The Omega family tent range is an affordable combination of comfort, space, stability and ease of construction. These models are a generous space solution for larger groups or family camping.
Rain fly is made of Polyester with a polyurethane coating, which gives it a water column with a height of 4,000 mm. Seams are taped with heating tape to prevent leaks.
The floor is made of Nylon with a polyurethane coating, which provides it with a 10,000 mm water column.
The tent poles consist of laminate segments with a diameter of 9.5 and 11 mm.
Technical specification
| features: | |
| Weight | 17.4 kg |
| Weight without inner tent | 14.4 kg |
| Package Size | ⌀32 x 68 cm |
| Number of people | 5+ |
| Amount of enterances | 2 |
| Construction type | Cupola |
| Amount of vents | 4 |
| Number of poles / crossing points | 5 / 5 |
| Buildable without a bedroom | Yes |
| Height of tent (bedroom) | 200 (160cm) |
| Siliconised | No |
| Taped seams | Yes |
| Number of pins | 37 |
| Category | Family |
| Material | |
| Material of poles | Fiberglass |
| Flysheet material | Polyester, PU coating 4 000mm H2O |
| Groundsheet material | Nylon, PU coating 10 000mm H2O |
| Pole diameter | 9,5 / 11 / 16 mm |
Description
The tent is double-layered and consists of an inner tent and an outer layer – rain fly. The inner tent has a rectangular floor plan with an entrance on its longest side. The outer tent has two entrances that can be supported and thus form a canopy over the entrance.
Tent concept
It is based on the principle that the tent pole structure strung in sleeves made of perforated material is outside the rain fly. Rain flyand the inner tent (which is suspended under the rain fly) are erected at the same time after threading the tent poles through the sleeves. The advantage of this method is that the inner tent can be detached from the rain fly, and the rain fly can then be erected separately, resulting in a single-shell tent.
Ventilation
It is located at the top of the dome of the rain fly. The canopies of the ventilation windows are shaped so that they are not tilted by the wind. This prevents leakage even during rain with strong wind.
Building a tent
Put the tent poles of the structure through the perforated sleeves outside the rain fly and insert the steel spikes strung on the floor near the trrain fly opic into the tubes at the end of the tent poles. We fasten the inner tent to the loops on the inside of the rain fly. We anchor the erected tent with pegs and cords and fasten it with plastic clips.
